Description

Haval H9 — Full-Size 4WD Off-Road SUV for Adventure and Fleet Use

The Haval H9 is Great Wall Motors' flagship full-size off-road SUV, built for buyers who need genuine four-wheel-drive capability, rugged durability, and commanding presence. Available with either a 2.0T gasoline engine (224 hp / 385 N·m) or a 2.4T diesel engine (186 hp / 490 N·m), the H9 is one of the few Chinese SUVs that offers true 4WD with low-range gearing. At 5,070 mm long with a 78-80 liter fuel tank, it is engineered for long-distance overland travel, fleet operations, and markets where road conditions demand a proper off-roader. For distributors targeting adventure, government, or mining sectors, the H9 is an exceptional value alternative to Toyota Land Cruiser Prado and Mitsubishi Pajero.

Key Highlights

  • Genuine 4WD with Low-Range — the H9 features a proper four-wheel-drive system with low-range transfer case, not just an AWD badge — making it capable of serious off-road driving.
  • Two Powertrain Options — 2.0T gasoline (224 hp, 385 N·m, 8-speed automatic) for performance markets, or 2.4T diesel (186 hp, 490 N·m, 9-speed automatic) for fuel economy and torque-heavy applications.
  • Full-Size 5,070 mm Body — commanding road presence with a spacious 5-seat cabin, generous cargo capacity, and high driving position for excellent visibility.
  • Long-Range Capability — 78L (diesel) / 80L (gasoline) fuel tank delivers 700+ km range, ideal for overland travel and remote area operations.
  • Rugged Body-on-Frame Construction — the H9 uses a ladder-frame chassis for superior off-road durability and load-carrying capability.

Two Powertrain Options

Specification 2.4T Diesel 4WD 2.0T Gasoline 4WD
Engine 2.4L Turbo Diesel, L4, 186 hp 2.0L Turbo Gasoline, L4, 224 hp
Max Power 137 kW 165 kW
Max Torque 490 N·m 385 N·m
Transmission 9-Speed Automatic 8-Speed Automatic
Top Speed 170 km/h 180 km/h
WLTC Fuel Consumption 8.9 L/100km 10.7 L/100km
Curb Weight 2,410 kg 2,330 kg
Max Gross Weight 2,870 kg 2,890 kg
Fuel Tank 78 L 80 L

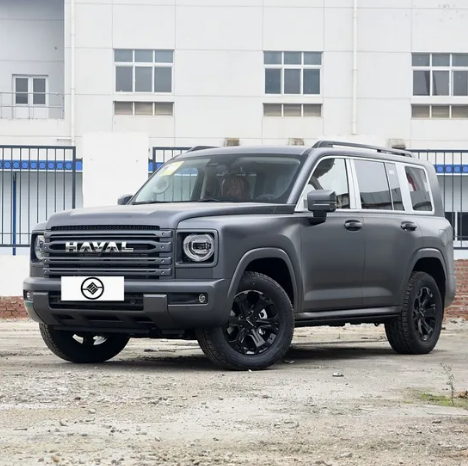

Exterior Design

The H9 has a bold, boxy, utilitarian design that clearly signals its off-road intent. The front features a large, upright grille with the Haval logo, flanked by rectangular LED headlights. The flat hood, squared shoulders, and high ground clearance give it a commanding presence. The side profile is clean and functional with large all-terrain tires, roof rails, and prominent wheel arches. The rear features a side-opening tailgate (ideal for mounting a spare tire), rectangular LED taillights, and a tow hitch. The 5,070 mm length and 1,960 mm width make the H9 a true full-size SUV that demands attention on any road.

Interior & Comfort

  • 10.25-inch digital instrument panel
  • 12.3-inch central touchscreen infotainment system
  • Leather seats with heating (front) and ventilation (front, higher trims)
  • Power-adjustable front seats with memory
  • Dual-zone automatic climate control
  • 360° surround-view camera with off-road view mode
  • Multi-terrain select system (Snow, Mud, Sand, Rock, 4L)
  • Multi-function steering wheel
  • Wireless phone charging
  • Premium audio system
  • Rear air vents
  • Power tailgate

Off-Road Capability

  • 4WD System — part-time four-wheel drive with low-range transfer case (4L mode)
  • Multi-Terrain Select — Snow, Mud, Sand, Rock crawl modes
  • Front and Rear Locking Differentials — available on select trims for maximum off-road traction
  • Approach/Departure Angles — generous clearance for rocky terrain
  • Wading Depth — capable of fording moderate water crossings
  • Hill Descent Control (HDC) — automatic speed control on steep descents
  • 360° Camera with Off-Road View — transparent chassis view for obstacle navigation
  • Tow Capacity — rated for towing trailers and equipment

Safety & Driver Assistance

  • Body structure — ladder-frame chassis with high-strength steel cabin
  • Airbags — dual front, front side, side curtain
  • Electronic stability — ESP, ABS, EBD, TCS, HDC, HHC
  • Active safety — AEB, FCW, LDW, BSD, RCTA
  • Adaptive Cruise Control (ACC) — available on select trims
  • 360° surround-view camera — with off-road transparent chassis view
  • TPMS — tire pressure monitoring system
  • Electronic parking brake — with Auto Hold

Full Specifications

Specification 2.4T Diesel 4WD 2.0T Gasoline 4WD
Brand Haval (Great Wall Motors) Haval (Great Wall Motors)
Model H9 2025 Warrior Edition H9 2025 Warrior Edition
Segment Large SUV Large SUV
Energy Type Diesel Gasoline (Petrol)
Engine 2.4L Turbo Diesel, L4, 186 hp 2.0L Turbo Gasoline, L4, 224 hp
Max Power 137 kW 165 kW
Max Torque 490 N·m 385 N·m
Transmission 9-Speed Automatic 8-Speed Automatic
Drive Type Four-Wheel Drive (4WD) Four-Wheel Drive (4WD)
Body Structure 5-Door, 5-Seater SUV 5-Door, 5-Seater SUV
Chassis Body-on-Frame (Ladder) Body-on-Frame (Ladder)
Dimensions (L×W×H) 5,070 × 1,960 × 1,930 mm 5,070 × 1,960 × 1,930 mm
Top Speed 170 km/h 180 km/h
WLTC Fuel Consumption 8.9 L/100km 10.7 L/100km
Curb Weight 2,410 kg 2,330 kg
Max Gross Weight 2,870 kg 2,890 kg
Fuel Tank 78 L 80 L
Steering Left-Hand Drive (LHD) Left-Hand Drive (LHD)

Target Markets & Export Suitability

  • Middle East (GCC) — full-size 4WD SUV demand is high; diesel option ideal for fuel economy; off-road capability suits desert driving; direct competitor to Toyota Land Cruiser Prado at a lower price
  • Africa — diesel 2.4T is ideal for mining, government, and NGO fleets; 4WD with low-range handles rough terrain; 700+ km range for remote area operations; body-on-frame durability
  • Latin America — adventure and rural market demand for proper 4WD; diesel option appeals to fleet buyers; towing capacity for agricultural use
  • Southeast Asia — off-road SUV market in Philippines, Thailand, and Indonesia; 4WD for rural and mountainous areas; diesel for fuel-cost-sensitive buyers
  • Central Asia — mountainous terrain demands genuine 4WD; diesel option for long-distance travel; proven cold-weather performance; LHD standard

Why Source the H9 from Xinbang?

  • Factory-direct pricing — sourced directly from Great Wall Motors with no middleman markup, offering significant savings vs. Toyota Land Cruiser Prado
  • Both powertrains available — offer diesel (2.4T) and gasoline (2.0T) from a single supplier to match market preferences
  • PDI inspection included — multi-point pre-delivery inspection with photo documentation before shipment, including 4WD system verification
  • Full export documentation — Commercial Invoice, Packing List, B/L, Certificate of Origin, spec sheets
  • Flexible shipping — RO-RO or container from Chongqing, Shanghai, or Tianjin ports
  • Dedicated account manager — English, Arabic, Spanish, or Russian-speaking support

Ready to order? Contact us for a competitive FOB/CIF price quote within 24 hours. Specify powertrain (diesel/gasoline), quantity, and destination port. Minimum order: 1 unit.
